PC+ABS
Hot runner mold; Special steel, high request of texture surface; High request of the mold precision.
Material Excellence,Precision Manufacturing,Aesthetic Versatility,Design Optimization,Durability & Longevity
Utilizes precision-controlled injection molding machines with advanced programming to manage complex shot profiles and maintain material consistency throughout the cycle.
Top-Level R&D Team;Advanced Processing Equipments;Perfect Quality Assurance;Ultra Short Delivery Time;Information Automation Management
Overview:

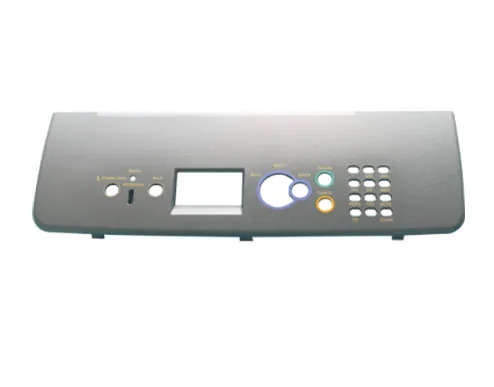

The Control Panel is a critical interface component in Office Automation (OA) equipment, facilitating user interaction and control over the device's functions. This injection-molded part is designed to house electronic components such as buttons, displays, and touchscreens, ensuring durability and ease of use in environments like offices where equipment frequently operates.
Design and Material Specifications:
Material Composition:
Typically manufactured from durable thermoplastics such as ABS (Acrylonitrile Butadiene Styrene) or Polycarbonate (PC), which are chosen for their robustness, aesthetic flexibility, and excellent impact resistance. These materials also provide good dimensional stability and a high-quality surface finish that can accommodate various textures and colors.
Mold Design:
The mold for the Control Panel is intricately designed using Computer-Aided Design (CAD) to ensure precise accommodation of all functional elements like button cavities, display windows, and LED indicators. It includes sophisticated features such as undercuts, side-actions, or threaded inserts that allow for the integration of additional components directly during the molding process.
Injection Molding Process:
Utilizes precision-controlled injection molding machines with advanced programming to manage complex shot profiles and maintain material consistency throughout the cycle. Critical parameters such as injection pressure, mold temperature, and cooling rate are finely tuned to prevent defects like sink marks or warping which could affect the fit of electronic components.
Surface Treatment Options:
Surface finishes can range from glossy to matte and can include textures that enhance grip or reduce glare on touchscreen devices. Post-molding operations might include painting, chrome plating, or applying soft-touch coatings depending on user interface requirements.
Color Integration:
Custom color matching is available during the compounding phase to meet branding requirements or aesthetic preferences without compromising the quality of plastic resins used.
Functional Features:
Ergonomic Design:
Engineered for user comfort and intuitive operation with appropriately placed buttons and responsive touch areas.
Environmental Resistance:
Materials are selected to withstand common cleaning agents, UV light exposure from office environments, and mechanical stress from regular use.
Integration Capability:
Designed to seamlessly integrate with other parts of OA equipment such as housings or stands without requiring extensive modifications.
Quality Control Measures:
Prototyping via 3D printing technologies allows for rapid iteration of design adjustments before finalizing the mold. During production runs, automated vision systems perform real-time inspections to ensure each control panel meets stringent quality standards. Functional testing includes interface responsiveness checks under simulated usage conditions to validate performance before assembly into final products.
Applications in Office Automation Equipment:
Control Panels are essential in:
Multifunction printers where they provide user access to various print settings and functions. Commercial copiers where they enable complex command inputs for large document handling tasks. Scanners where they allow users to adjust resolution settings or scan modes easily.
Conclusion:
The Control Panel serves not only as a functional interface but also significantly influences the overall user experience with OA equipment. By leveraging advanced injection molding techniques combined with high-performance materials, manufacturers can deliver durable yet aesthetically pleasing control panels that enhance both usability and reliability of office automation devices.
