PP-GF23
Complex curved surface shape, need 4 segments demolding.
4 layers of sliders are stacked for processing and the blade step need to be controlled less than 0.05mm.

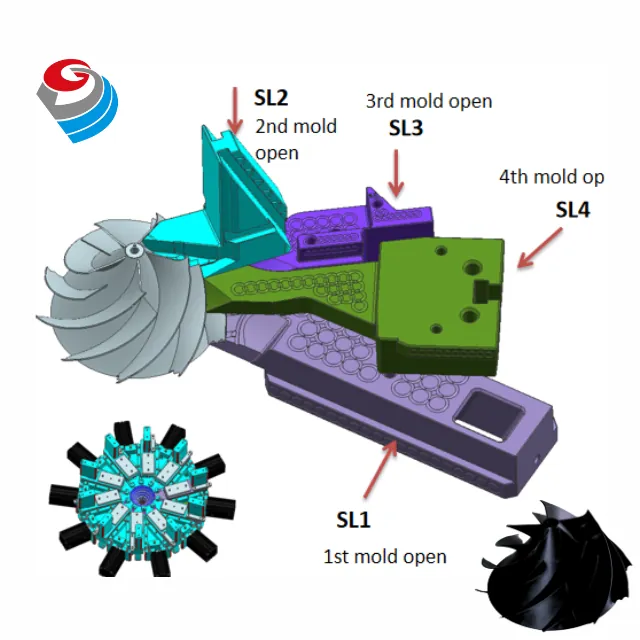

Control different mold opening sequences by 4 layer linkage slider structure with different driving units.
From professional perspective to analyse and achieve to make the mold of complex curved surface shape part.
Mixed-flow fan blades: core components for efficient airflow
Mixed-flow fan blades are a core component for airflow control and are widely used in equipment such as tower bladeless fans and portable air conditioners. Its unique material selection and complex structural design make it perform well in a variety of application scenarios.
Product Features
Mixed-flow fan blades are made of PP-GF23 plastic material, which has excellent mechanical strength and durability and can operate for a long time under high load without deformation. The design of mixed-flow fan blades involves complex curved shapes, and four-stage mold release directions are required to ensure production accuracy and consistency. This design not only improves the air volume strength of the blade but also ensures its stability during operation.
Processing accuracy
To ensure the efficient operation of the mixed-flow fan blades, the mixed-flow fan blades use a four-layer slider stacking process, and the blade segment difference accuracy needs to be controlled to be less than 0.05 mm. This high-precision processing method ensures the dimensional consistency and performance stability of each blade, thereby ensuring the reliable operation of the entire fan system.
Technical highlights
In the design and manufacturing process of the mixed flow blades, an advanced four-layer linkage slider structure is used. This structure controls different mold opening sequences through different drive units, achieving precise manufacturing of products with complex curved shapes. Manufacturing companies in Eastern Europe, Japan, the United States, Southeast Asia and other places have successfully applied this technology.
In summary, mixed-flow fan blades have become the core components of efficient air flow control with their excellent material selection, complex structural design, high-precision processing technology and advanced manufacturing technology. Whether in tower bladeless fans, portable air conditioners or other air flow equipment, mixed-flow fan blades have demonstrated their excellent performance and reliability. As a leader in this field, GDM has continuously promoted the development and application of mixed flow blade technology with its rich experience and innovative technology.
