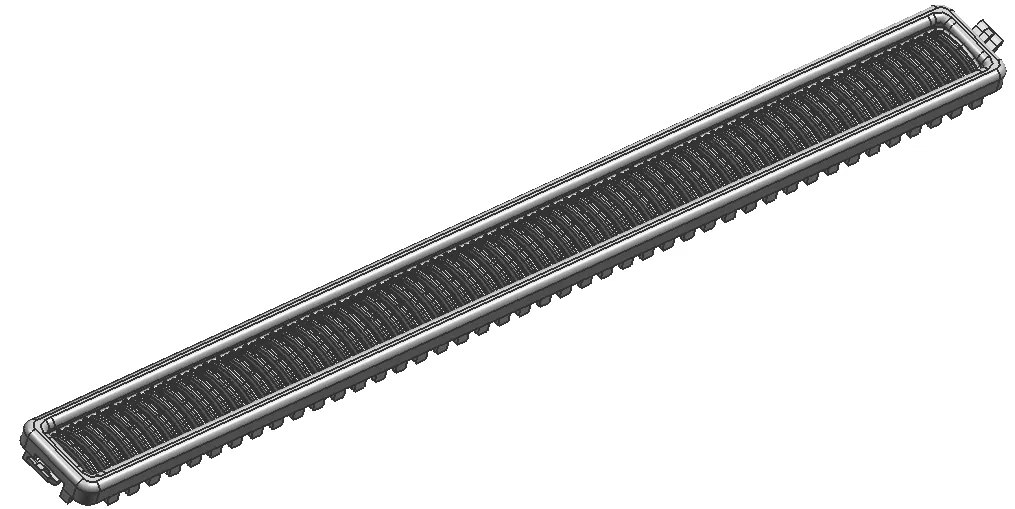

Pipe Box Stamping Mold

1.Aluminium alloy T=1.5

2.High requirements on the flatness of the product.

3.This is a mirror of the drawing shape , otherwise there will be scratches.

4.The product material is aluminum, which is easy to deform and crack.

5.Through the simulation analysis by AutoForm R10 and internal discussion, the die with complex curved shape can be realized, and the whole process is done by Makino CNC high-speed precision carving.

Availability:



Inquire

Part Material:
Aluminium alloy T=1.5
Part Characteristic:
High requirements on the flatness of the product.
Machining Accuracy:
This is a mirror of the drawing shape , otherwise there will be scratches.
Technical Outstanding Point:
The product material is aluminum, which is easy to deform and crack.
GDM Advantage:
Through the simulation analysis by AutoForm R10 and internal discussion, the die with complex curved shape can be realized, and the whole process is done by Makino CNC high-speed precision carving.
