06Cr19Ni10
Part to remain flat
Drawing surface to be mirror polished to avoid scratch issue.
Bending root is connected with embossingg , but part is w/o appearance issue.
The part forming defect can be foreseen by using CAE analysis during ananlysis phase ,and put forward the optimization solution.
Advantages of thermal insulation cover stamping molds

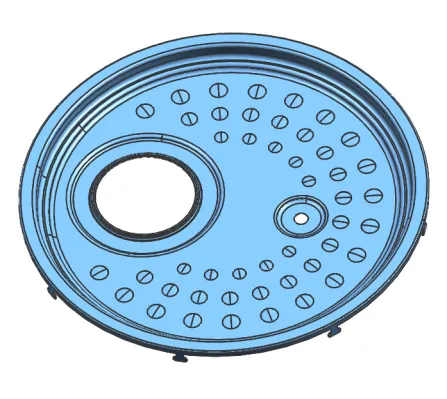

Product name: Thermal insulation cover
Product material: 06Cr19Ni10
Product features:
As a thermal protection component, the thermal insulation cover has extremely high requirements on its flatness. It is necessary to ensure that the product remains flat during the production process to ensure its effectiveness and aesthetics during use.
Processing accuracy:
In order to avoid scratches on the surface of the product, the stretched shape of the thermal insulation cover stamping dies needs to be mirror polished. Mirror polishing can not only improve the surface quality of the product, but also significantly reduce surface damage caused by friction, thus improving the overall performance and service life of the product.
Technical Highlights:
In terms of production process, we adopt a stamping dies technical design that connects the bending root with the convex hull. This design not only enhances the structural strength of the product, but also ensures that the appearance of the product is intact during use without any defects that affect the appearance.
GDM advantages:
In the early stages of production, we used CAE analysis technology to conduct a detailed assessment of the molding process of the thermal insulation cover, identify and foresee possible molding defects, and propose corresponding optimization plans. This predictive analysis and improvement capability enables us to effectively reduce the rate of defective products and improve production efficiency and product quality during the production process. You are welcome to consult us on injection mold and metal stamping mold opening plans. Gree Daikin Mold will serve you wholeheartedly.
